Imaging Guidelines

The following images show some common pitfalls and how to avoid them.

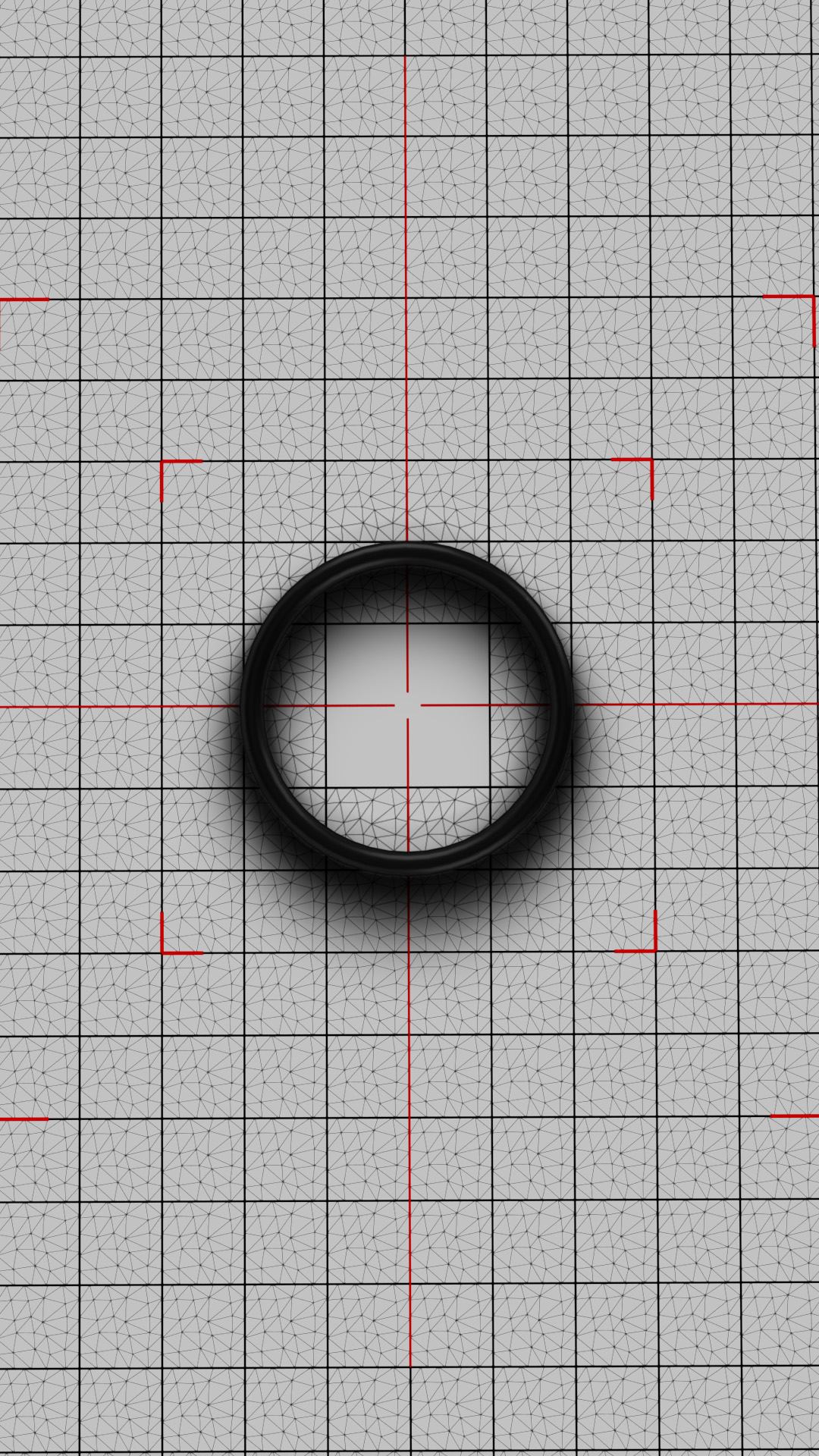

Excessive shadow

Bad image
Good image
The photograph contains excessive shadow due to oblique lighting The photograph is taken with diffuse lighting and the o-ring is not partially obscured by shadow

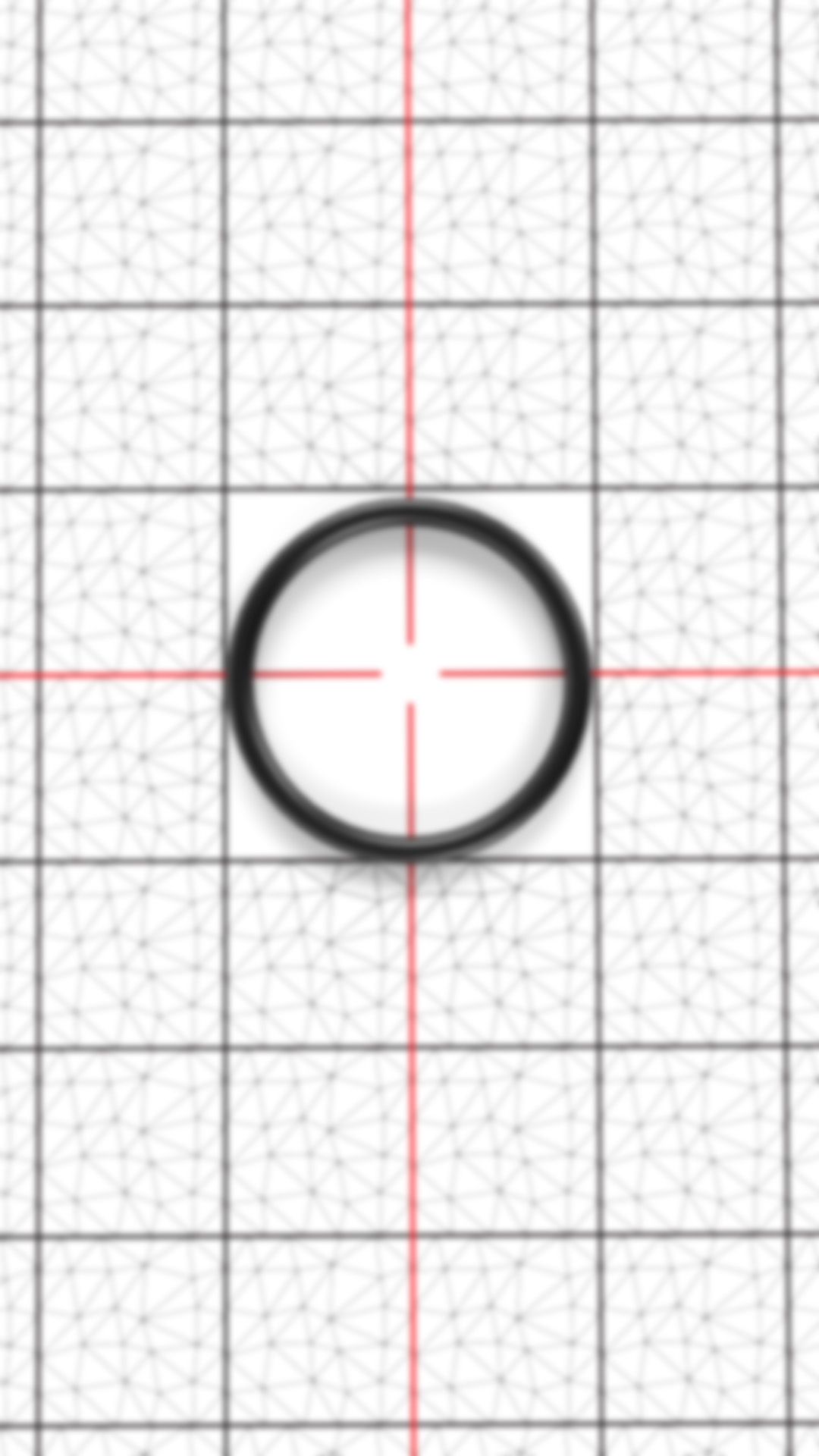

Lack of focus

Bad image
Good image
The photograph is taken too close to the o-ring, and the camera is unable to focus For small o-rings, taking the picture from further out to achieve focus is required

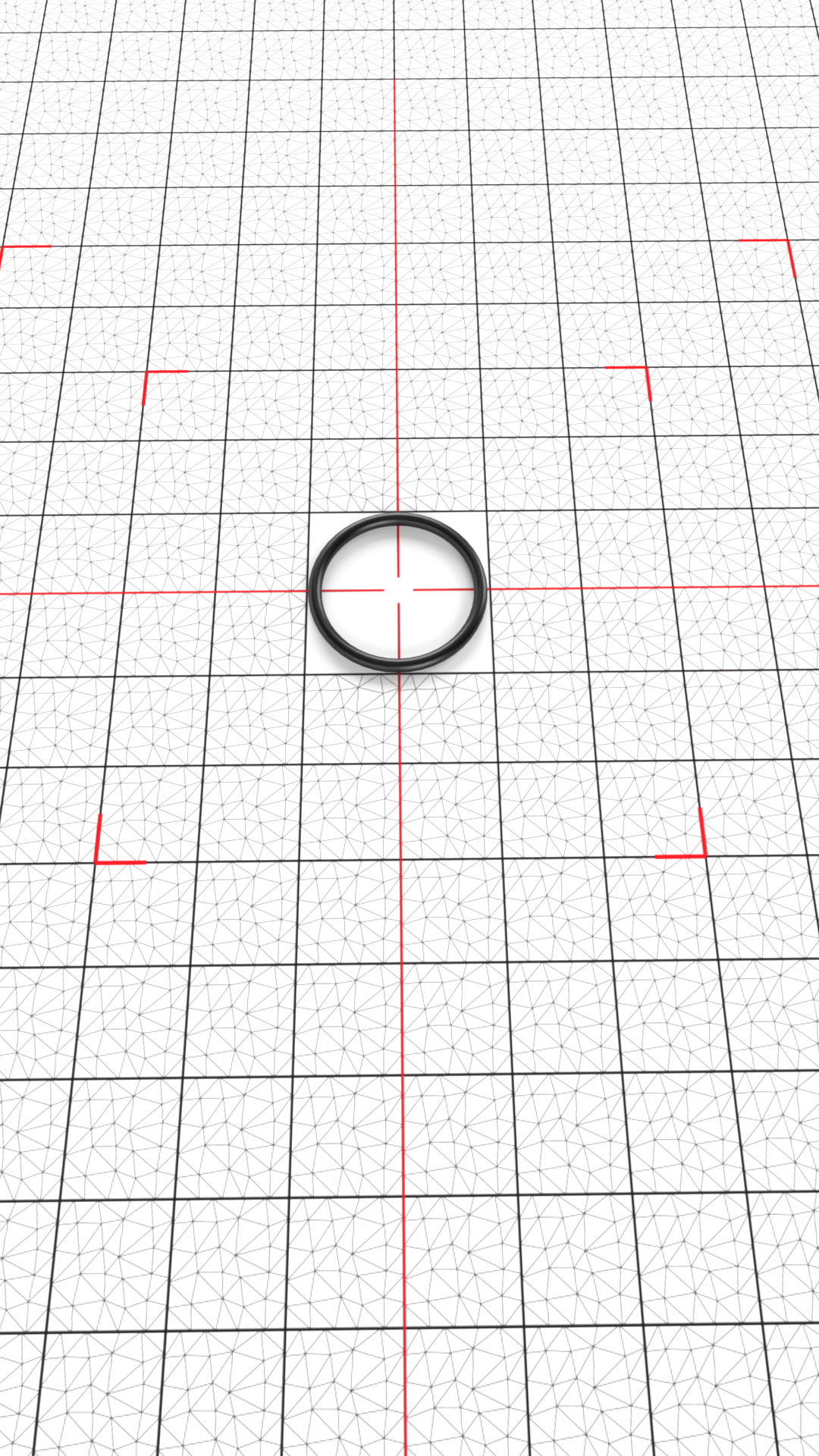

Perspective skew

Bad image
Good image
The camera is not perpendicular to the plane of the grid The camera is approximately perpendicular to the grid, there is minimal perspective skewing

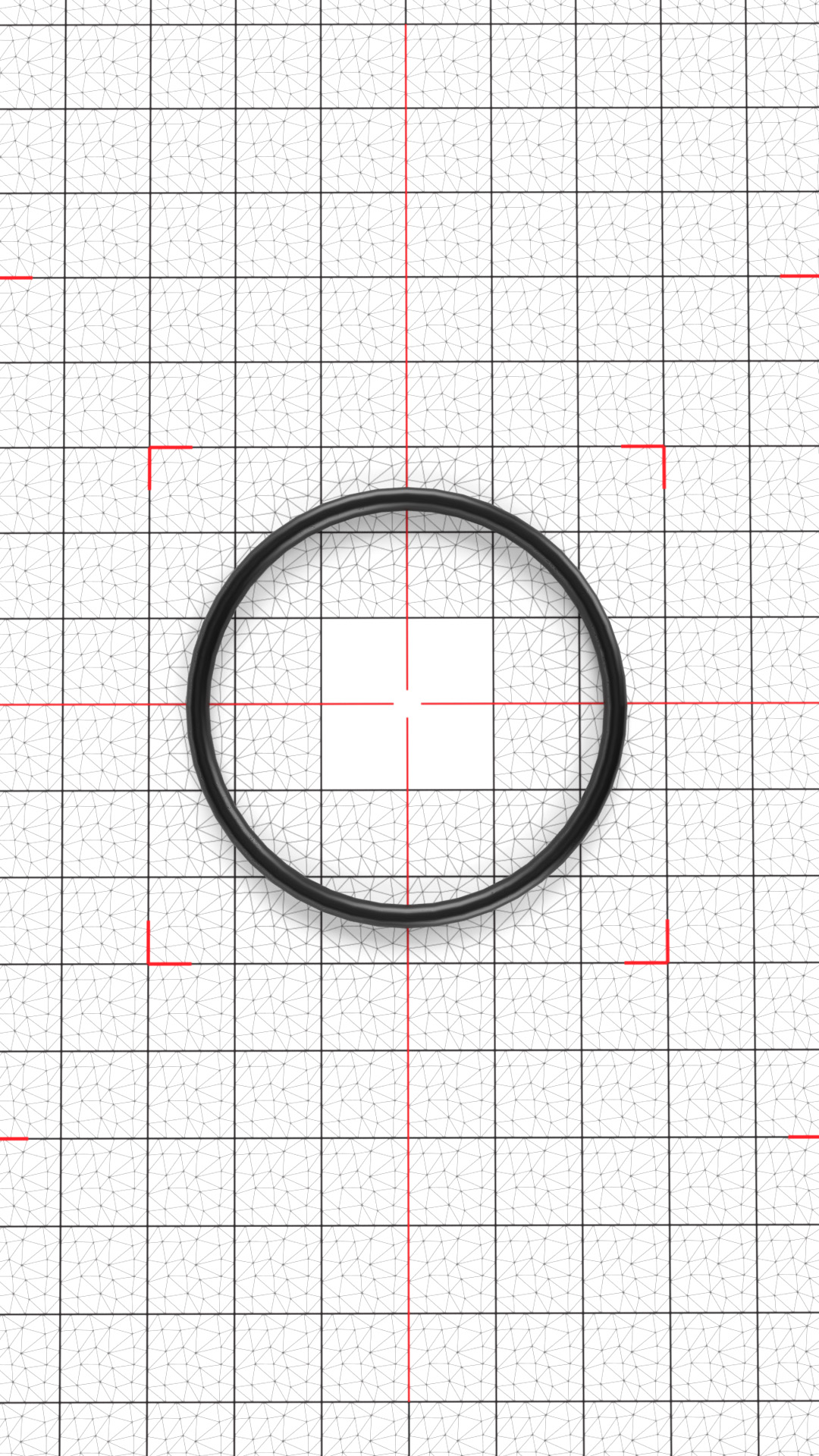

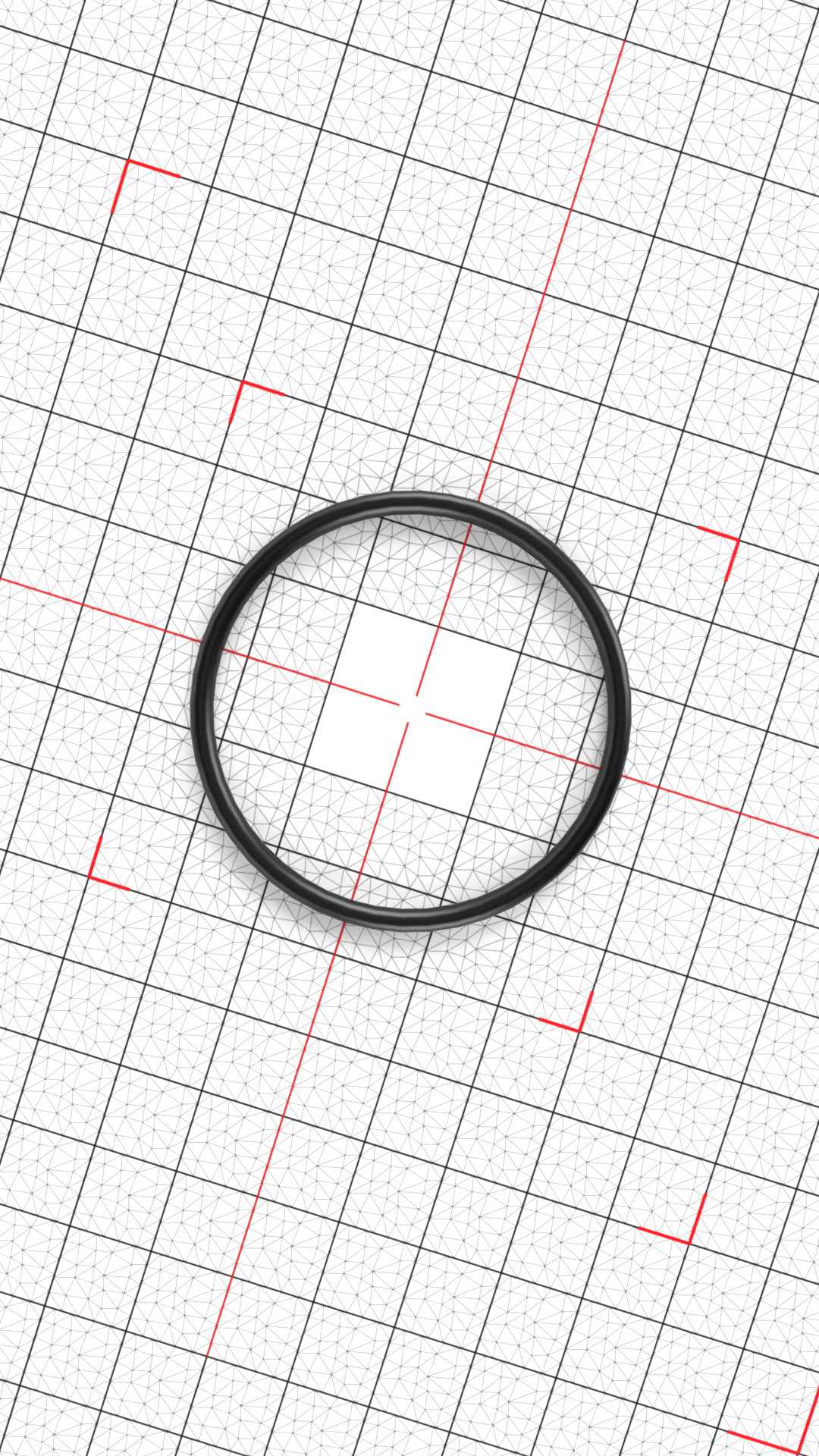

Rotation

Bad image
Good image
The grid is not aligned with the vertical direction of the photograph The grid is correctly aligned with the vertical direction of the photograph

Too close

Bad image
Good image
The object is incorrectly framed and is partially cropped The object is suitably framed

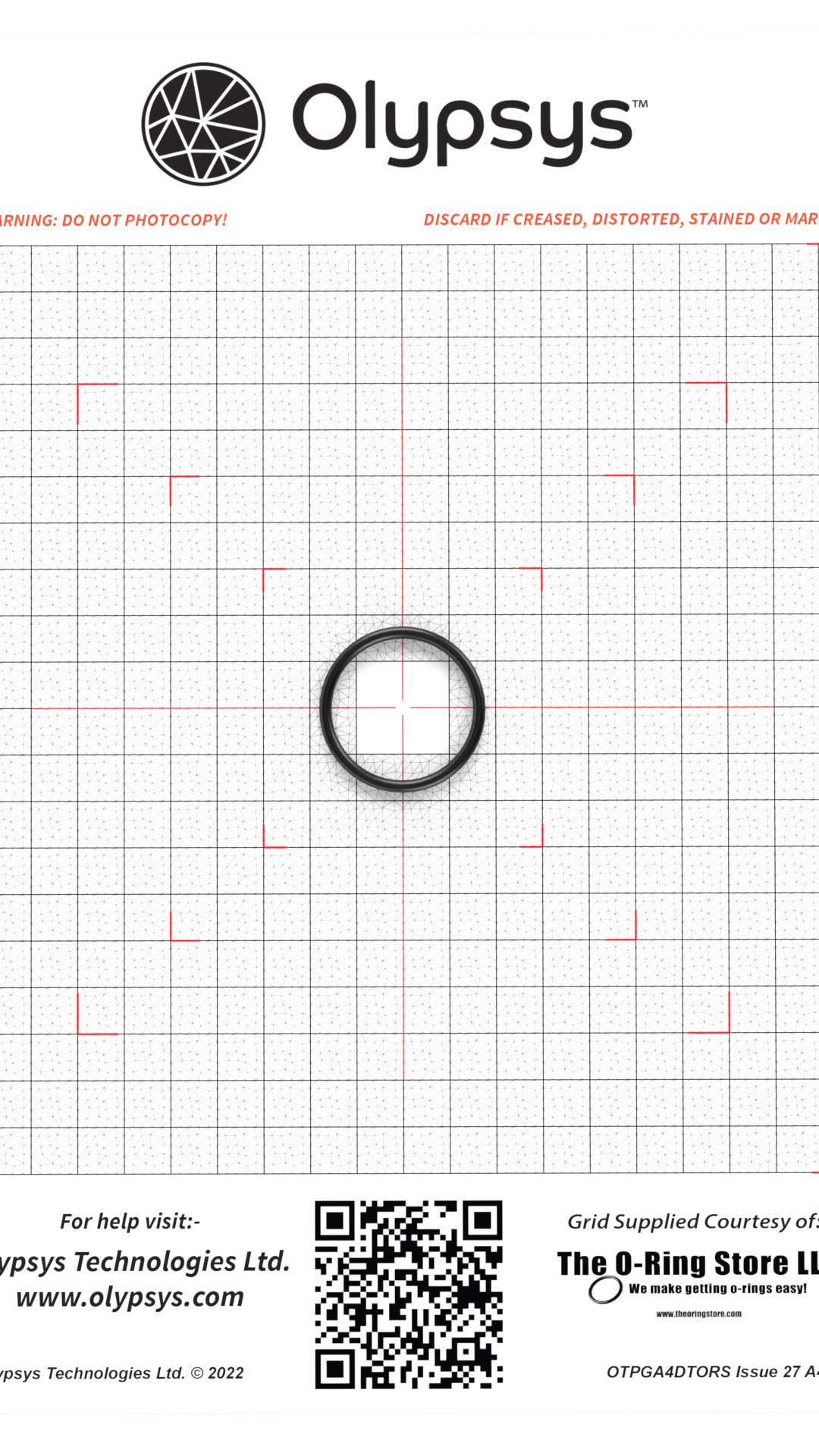

Too far

Bad image
Good image
The o-ring is too small in the photograph (this is acceptable for small o-rings where it is required to achieve focus) The o-ring is taking up the correct amount of space in the photograph

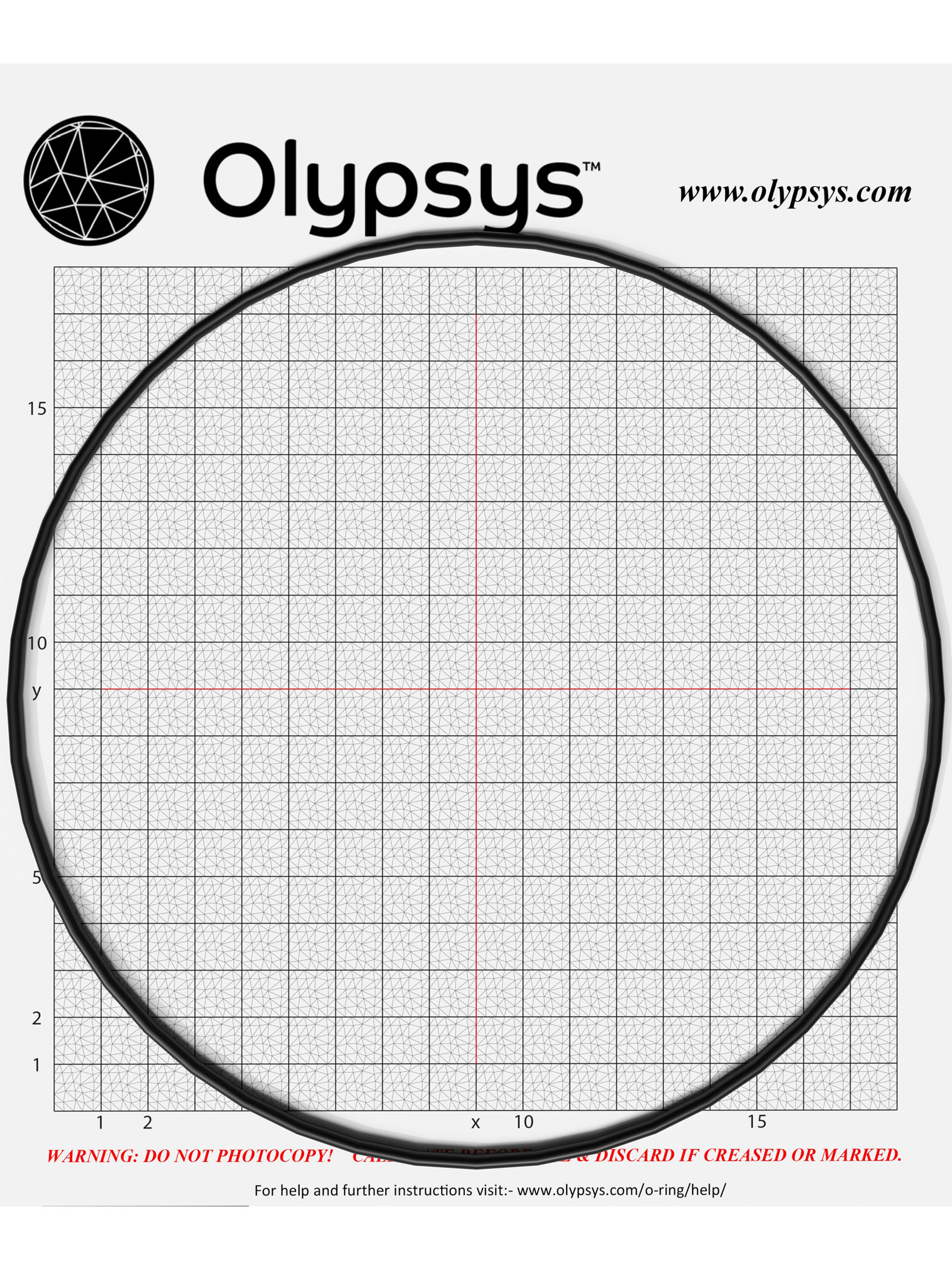

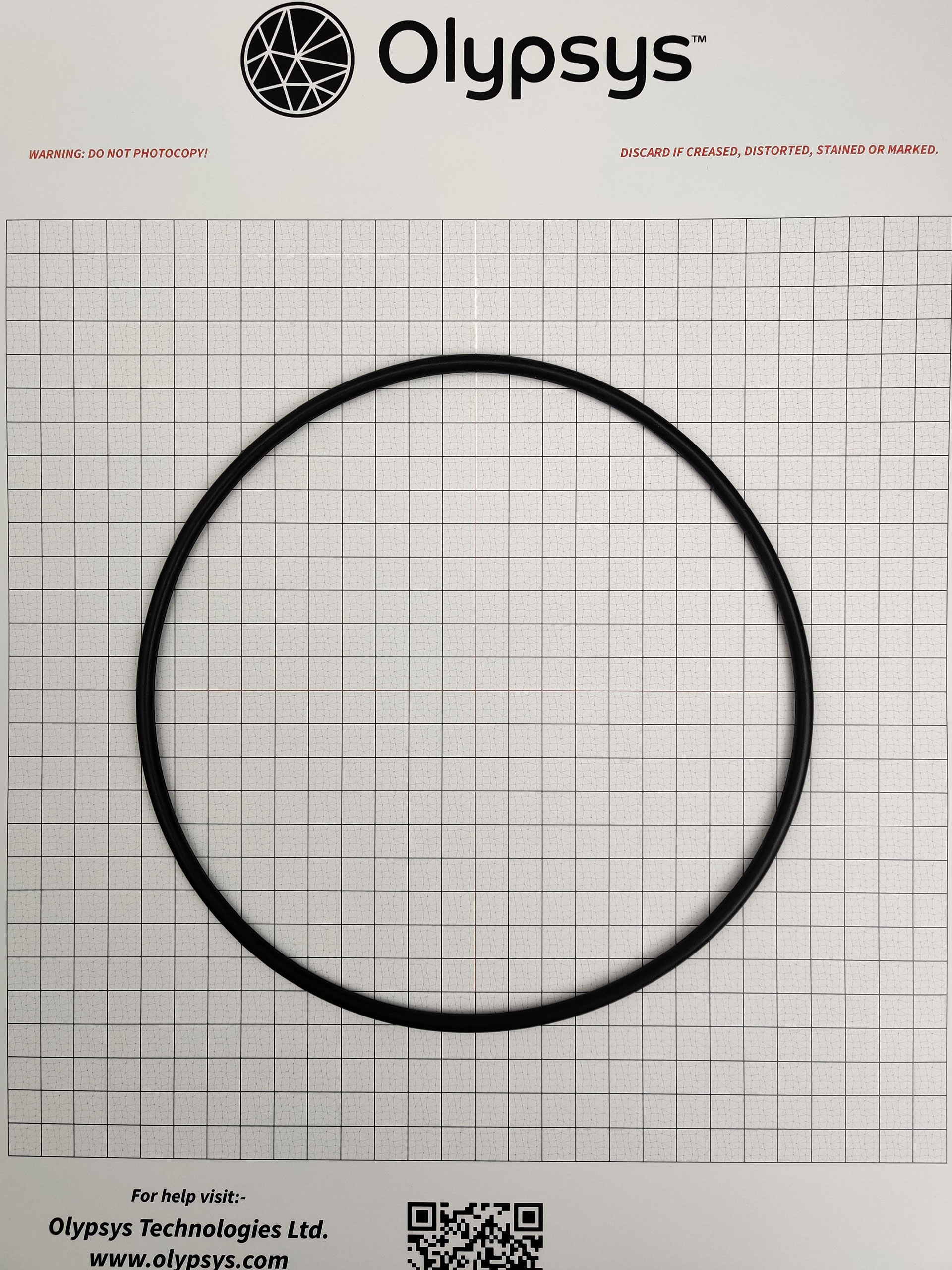

Incorrect grid

Bad image
Good image
The o-ring is too large for the grid The correct size (A3) grid is used

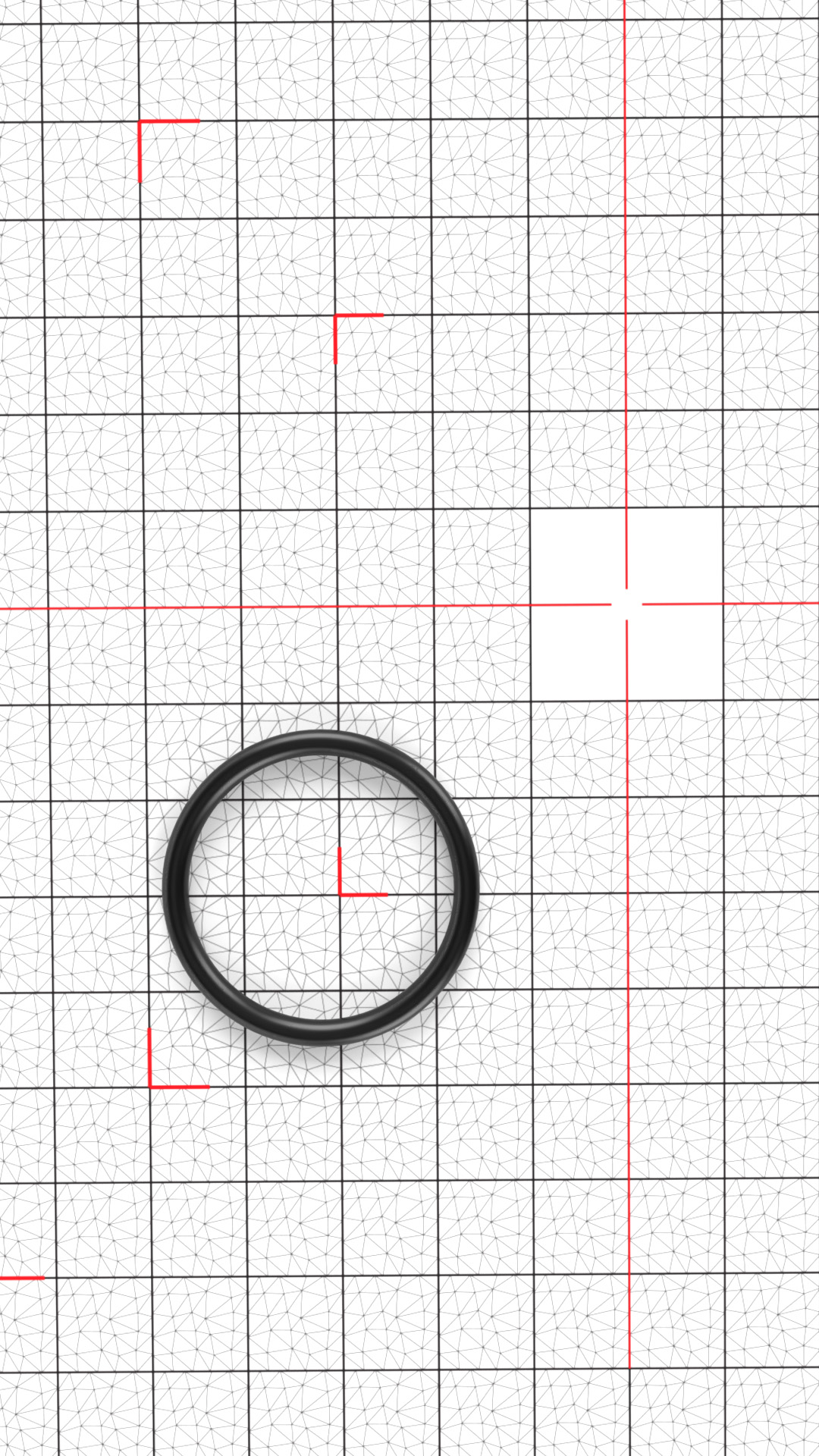

Off-center

Bad image
Good image
The o-ring is not centered in the photograph The o-ring is approximately at the center of the photograph

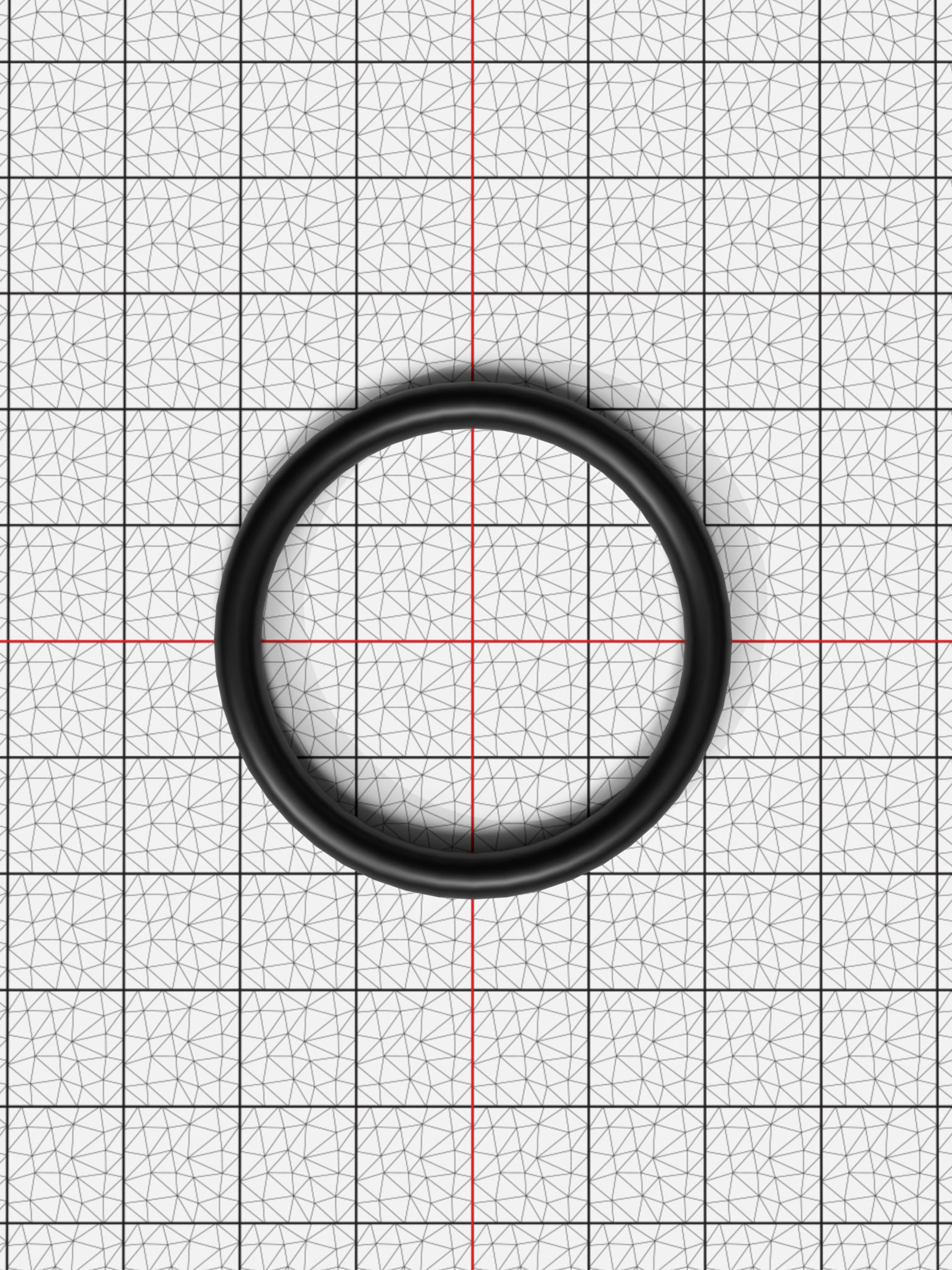

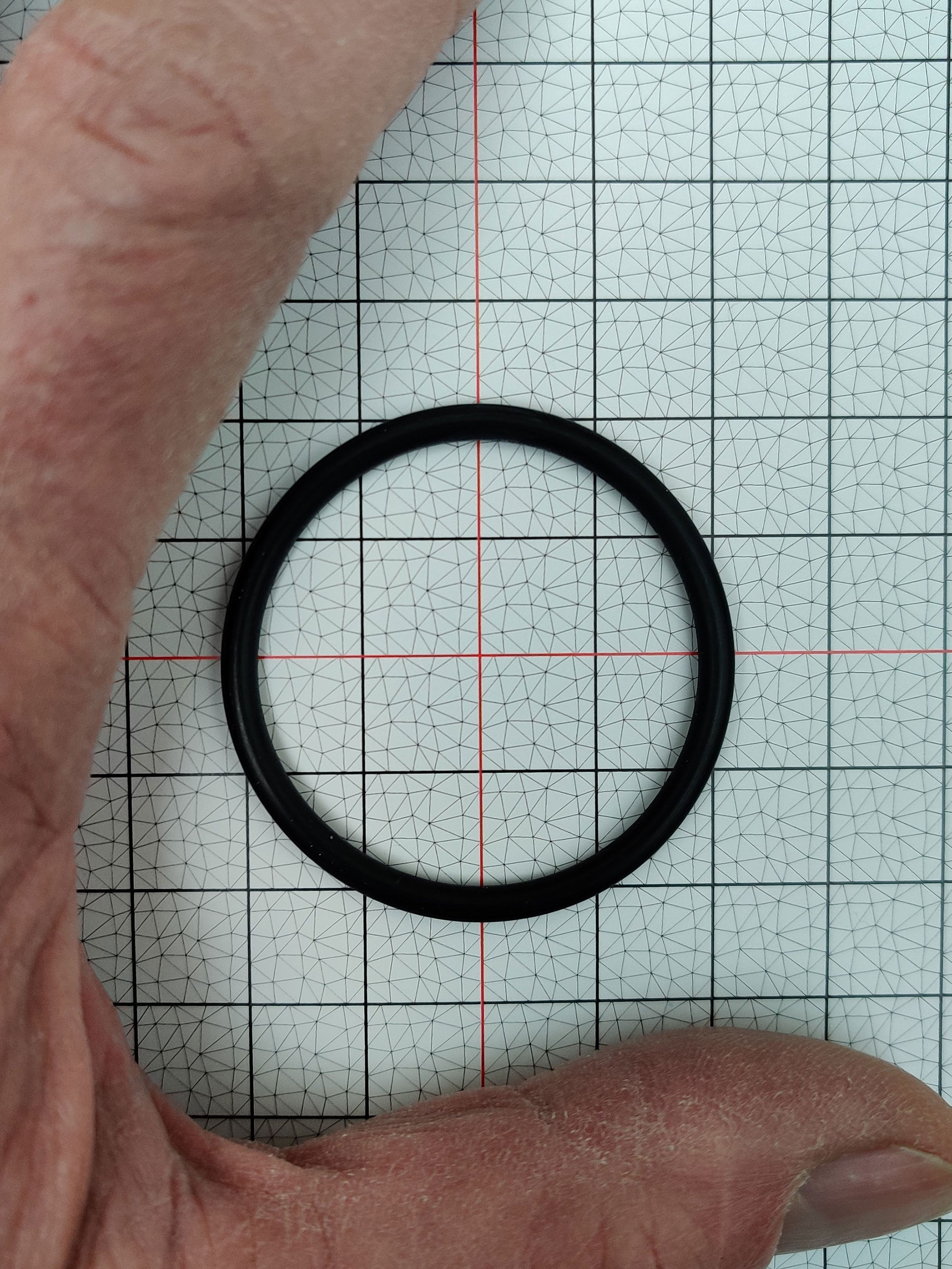

Obstruction

Bad image
Good image
The photograph contains debris or other artefacts that are not the grid or the o-ring There are no other items in the photograph
