Olypsys for Gaskets
Photograph a gasket with your phone. Get a clean, CAD-ready drawing in about a second, plus an instant match against standard gaskets.
From Photo to Drawing in a Second
A failed gasket usually arrives with no drawing and no part number. Tracing it by hand and measuring bolt circles with callipers takes hours. Olypsys does it from a single photo.
One phone photo on an Olypsys grid…

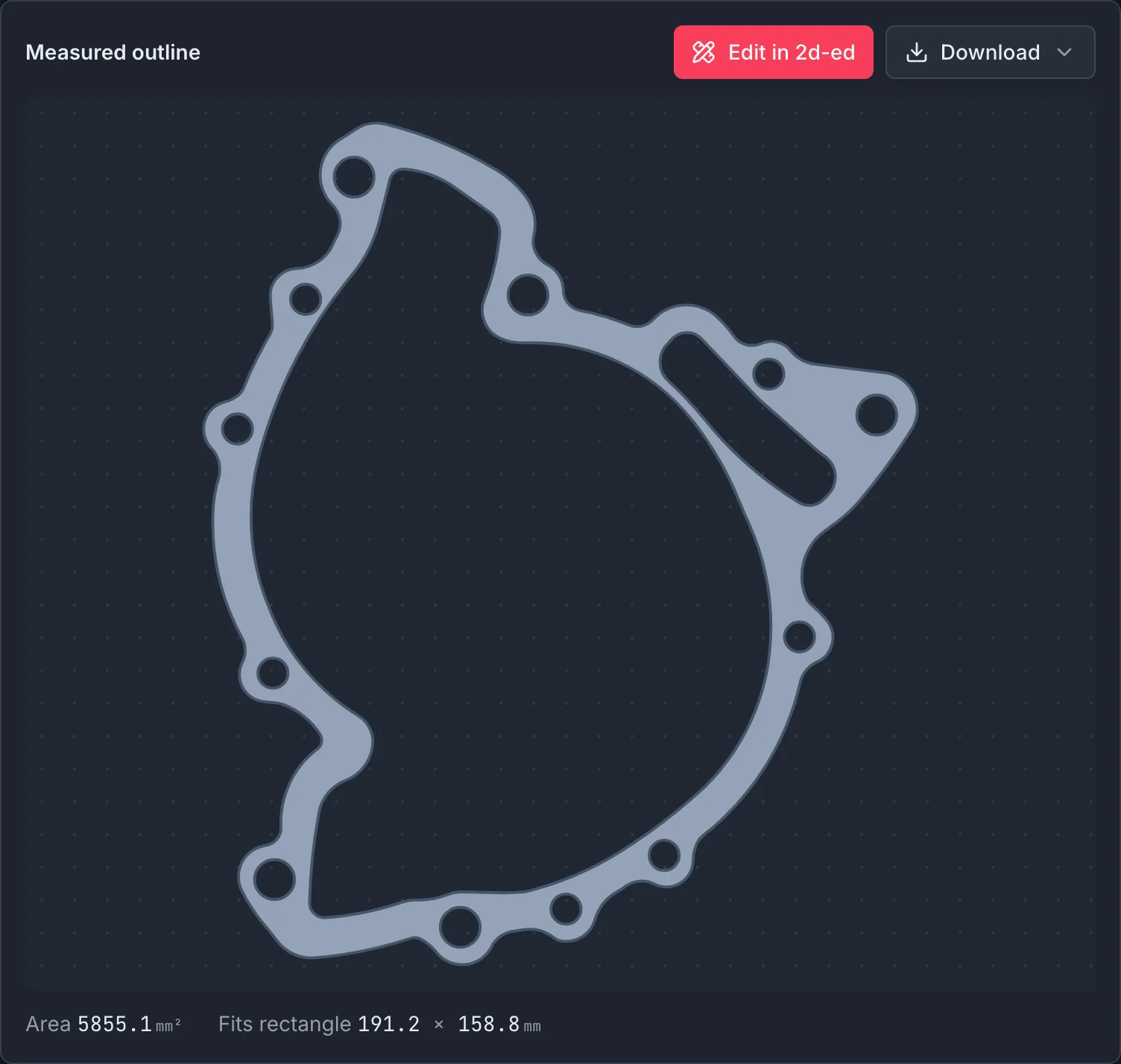

…becomes a clean, dimensioned profile in about a second. 191.2 × 158.8 mm, 14 bolt holes.
The profile is built from true arcs, straight lines, and bolt circles, the way an engineer would draw it rather than a jagged trace of thousands of tiny segments. Engineering constraints are recognised too: bolt holes of the same diameter come out equal, and tangent edges stay tangent. Download it as DXF and cut a replacement straight away.
Judge the Files Yourself
These are real gaskets, measured with a phone on an Olypsys grid and exported straight from the app. Open them in your own CAD and inspect the geometry.
Identify Standard Gaskets
Every measurement is checked against a built-in catalogue of standard flange gaskets, including ASME B16.21 and EN 1514-1 sizes. You get the best match with a confidence score, plus ranked alternatives. Ordering a replacement takes one phone photo.

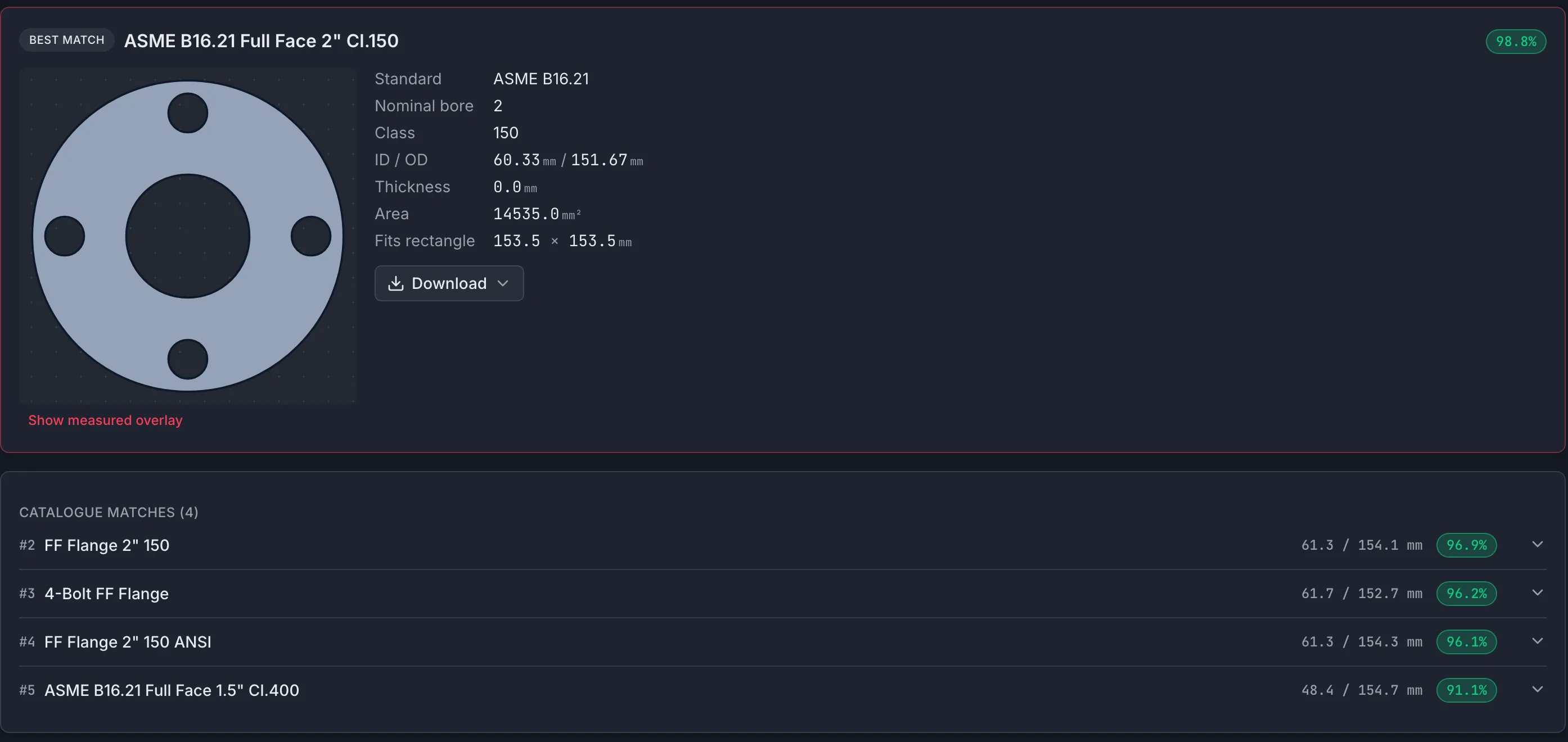

A worn flange gasket identified as ASME B16.21 Full Face 2" Cl.150 at 98.8% confidence.
Review and Edit in the Browser
Every measurement opens in 2d-ed, the parametric editor included for Pro users. The original photo sits underneath the drawing, so you can check the result against the real part and adjust anything directly. When the AI does get an edge wrong, you will see it straight away and fix it in seconds. That is still far quicker than measuring by hand and redrawing somewhere else.

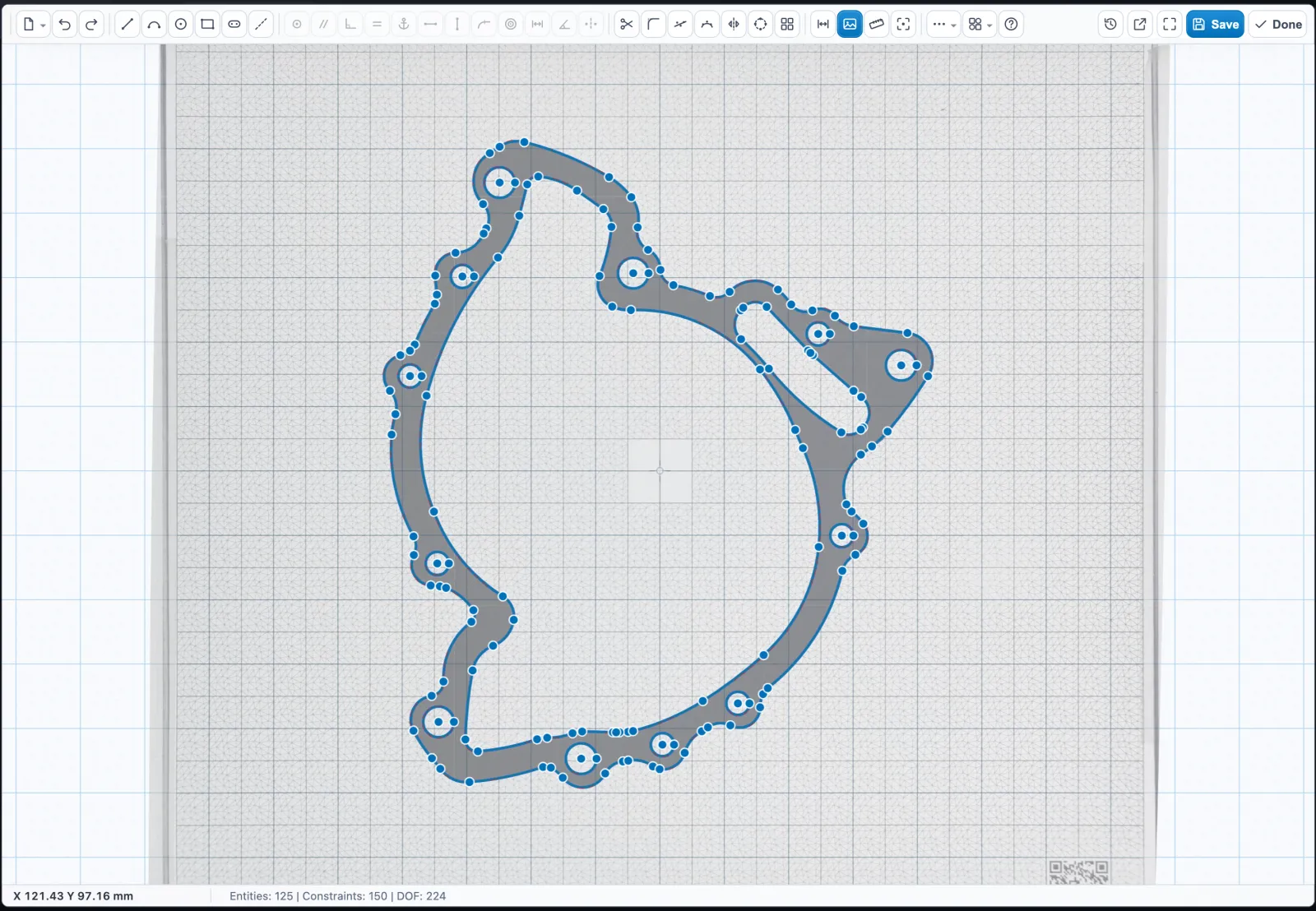

The same gasket open in the editor. The drawing sits over the original photo, so checking it takes a glance.
Parametric
Dimensions and relations drive the geometry. Change one value and the rest of the sketch follows.
Photo Underlay
Trace missing detail or verify an edge against the photograph without leaving the drawing.
Nesting
Lay parts out for cutting with true-shape nesting, including parts nested inside other parts' holes.
Built for Real Gaskets
Ten years of building optical measurement systems on off-the-shelf hardware went into this. It handles the gaskets that actually cross your bench: worn, oily, hand-cut, or fresh off a flange.
Any Shape
Full-face flange gaskets, transmission and housing gaskets, slots, oval bores, and irregular outlines. Not just rings.
CAD-Quality Geometry
Arcs, lines, and bolt holes are fitted as true geometric elements, so the DXF opens cleanly in any CAD package.
Standard Identification
ASME B16.21 and EN 1514-1 flange gaskets built in, covering DN10–DN800 across the common pressure classes.
Your Own Catalogue
We can load your part range so matches come back with your part numbers, visible only to your organisation.
Edit History
Saving an edit archives the version it replaces, so nothing is ever lost and any version can be restored.
Full Traceability
The photo, measured profile, match results, and every edit are stored in the Vault with operator and timestamp, ready for your next audit.
Work With Us
Gasket measurement is available today in the Olypsys app for Pro users. If you supply or consume gaskets at scale, we should talk.
Distributors
Identify a customer's gasket at the trade counter and quote a replacement in minutes. Branded PDF reports included.
Enterprise
Roll out to every site with your own catalogue, your workflows, and central data management in the Vault.
Custom Integration
The measurement engine is available for integration. We can build it into your own app, ERP, or quality system.
Measure your own gaskets
Book a 15-minute live demo, or talk to us about distribution and integration.
